PC 04-02 | Push in Fitting - Male Straight | 4mm O.D Tubing, R, PT, BSPT 1/4 Male Thread

PC 04-02 pneumatic push in fitting (push to connect fitting) male straight is designed to connect 4mm O.D tubing to R, PT, BPST 1/4 female threaded device in straight line. 4mm O.D tubing to R, PT, BPST 1/4 male straight connector push in fitting features a external hexagon nickel-plated brass body. Internal hexagon on straight adapter allows assembly in limited spaces. PC 04-02 has pre-coated Teflon thread sealant. Oval or round release ring helps to connect or disconnect tubing easily by manual, no special tools required.

4mm x R, BSPT 1/4 Male Thread Push in Fitting Male Straight
Push-in Tubing O.D: 4mm
Thread Size: R, PT, BSPT 1/4
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass
Thread Material: Nickle Plated Brass
Thread Sealing: Teflon
Seal, O-ring: NBR
Working Pressure: 0—1.0MPa | 0—150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0—60°C | 32—140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC
Price: £1.00
Request for Quotation

Drawing and Dimensions of PC 04-02 | Push in Fitting - Male Straight | 4mm O.D Tubing, R, PT, BSPT 1/4 Male Thread

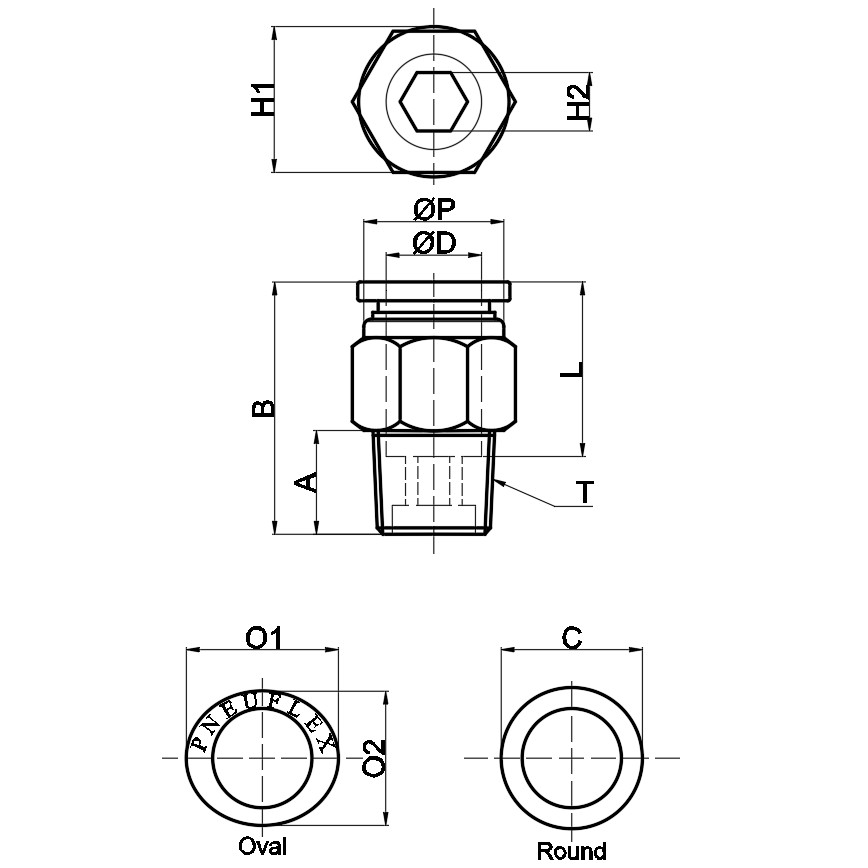

drawing of PC 04-02 | Push in Fitting - Male Straight | 4mm O.D Tubing, R, PT, BSPT 1/4 Male Thread
Part No. ØD T ØP A B L H1 H2 O1 O2 C
PC 04-02 4mm PT, R, BSPT 1/4 9.8mm 9.5mm 19mm 14.5mm 14mm 3mm 11.8mm 10.3mm 10.3mm
