Push to Connect Fittings (NPT Thread)

Pneuflex NPT thread push to connect fittings (pneumatic push in fittings, one touch tube fittings) are made of nickel plated brass(thread) and PBT(body), stainless steel tube gripping claws, collars and POM release sleeves (collets) offer a quick hold and release mechanism to provide a low disconnection force for easy removal of the tubing. Elbow and tee pneumatic fitting can be rotated after installation to allow for variations in piping direction. Pre-coated Teflon male NPT threads are ready to use without additional sealing. Push to connect fittings are easy to install and release. Simple installation--push the tubing in, and the connection is complete. To release the tubing, press the release sleeve on the fitting, and you can easily pull the tube out. Push to connect fittings (pneumatic push in fittings, one touch tube fittings) come in a variety of types, models and sizes to satisfy various piping demands and provide essential links between components in pneumatic systems. Accommodate inch tubing O.D ranging from 1/8" to 1/2"; thread sizes range is from 10-32 UNF, 1/8 NPT to NPT 1/2. Metric tubing 4 mm to 16 mm with 10-32 UNF to NPT 1/2 thread push to connect fittings are also available.

Shape of Release Sleeve: Oval and Round.
Colors of Release Sleeve: Blue, Red, Black, Grey or Custom Color.
Body Color: Black or Grey.

Technical Data

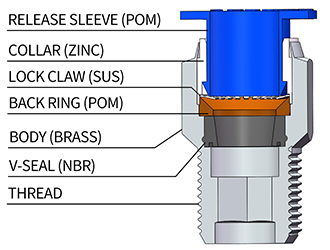

Structure of Push in Fittings
Fluid Admitted: Air, Vaccum, Water(no freezing)
Body Material: Nickel Plated Brass & PBT Plastic
Thread Material: Nickle Plated Brass
Seal, O-ring: NBR
Working Pressure: 0—1.0MPa | 0—150psi
Proof Pressure: 3.0Mpa | 435psi
Negative Pressure: -100Kpa | -29.5 In Hg
Working Temperature: 0—60°C | 32—140°F
Lock Claw: Stainless Steel(SUS)
Applicable Tube: PU / PA / PE / PVC


PDF Catalogue
Applicable Tube O.D
Thread Type and Size
